Unable to connect to VAMI after upgrading the vCSA

One of the plus points with upgrading your vCenter Server Appliance to 6.0 update 1 is the fact that VMware have re-introduced the Virtual Appliance Management Interface (VAMI). This was one of my bug-bears with 6.0… how any sort of administration/configuration work required you to access the vCSA shell!

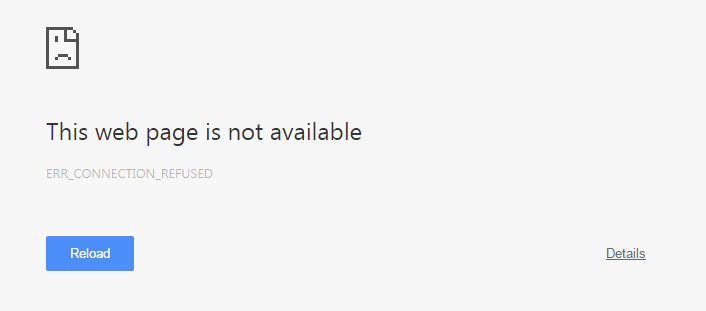

Recently after upgrading a customers vCSA from 6.0 to 6.0 update 1, we couldn’t access the VAMI to change the network and password policy settings. We rebooted the vCSA several times but still the VAMI was inaccessible, within Chrome we were getting the following error:

vami

I couldn’t work out why the VAMI services wasn’t coming online….. After several minutes of searching on Google, I came across the following VMware KB:
http://kb.vmware.com/kb/2132965

It turns out that there is a known bug with the VAMI web-service if you disable IPv6 within the vCSA console (which is what I had done as there was no requirement from the customer to use IPv6).

There is currently no resolution to this bug, and in order to solve the issue you have to edit the lighttpd configuration file.
(lighttpd is a light-weight open-source web server)

To workaround this issue set the server.use-ipv6 parameter to disable in the /etc/applmgmt/appliance/lighttpd.conf.
  1. Connect to the vCenter Appliance or Platform Service Controller Appliance through SSH or console.
  2. Run this command to enable access the Bash shell:
    shell.set –enabled true
  3. Type shell and press Enter.
  4. Open the lighttpd.conf file using a text editor:
    vi/etc/applmgmt/appliance/lighttpd.conf

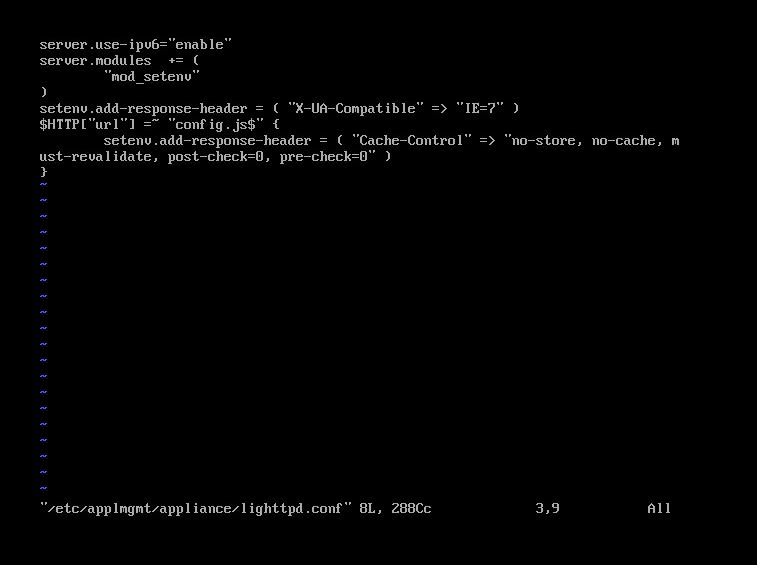

    vami1
  5. Search for the entry server.use-ipv6=”enable”
  6. Change enable to disable.
    server.use-ipv6=”disable”

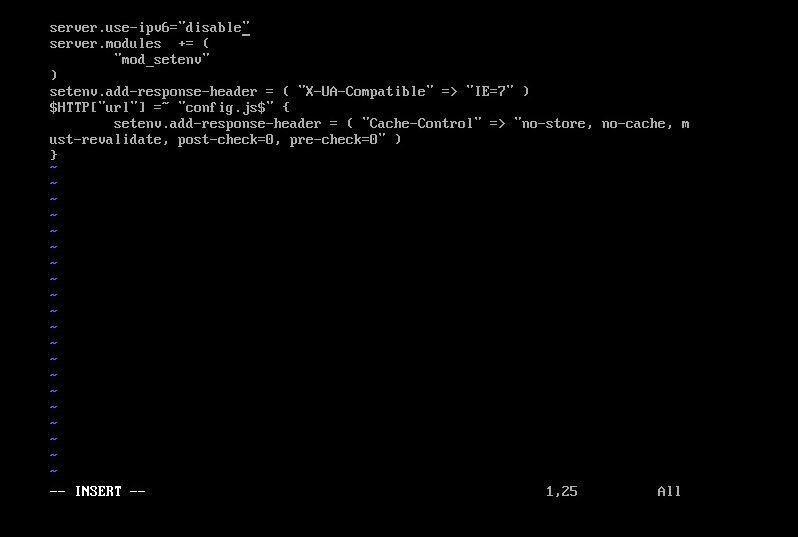

    vami2
  7. Start the VAMI service by running this command:
    service vami-lighttp start
  8. You should now be able to access the VAMI from a browser (https://vCSA_IP_address:5480 or https://vCSA_FQDN:5480).
