Upgrading to SRM 5.8 and vSphere Replication Appliance 5.8

There were new versions released earlier this month for a number of VMware products, and one of the things I like to do is keep my demo environment up to date! =)

Upon upgrading SRM from 5.5 to 5.8 and vRA from 5.5 to 5.8 (I’m using vSphere replication with SRM in my demo environment), I noticed that the usual process of upgrading the vRA from the admin page doesn’t work if you point it at the online repository!
srm2

From the Release Notes, it turns out that the downloadable ISO image is the only means of upgrading from vRA 5.5.x or 5.6 to 5.8!
You’re not able to use VUM or the VAMI (Virtual Appliance Management Interface – the vRA admin page) to do the upgrade! =(

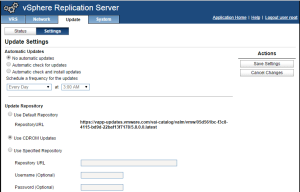

So what you have to do is download the full vRA ISO image, mount the ISO to the vRA and then change the update repository to use CD-ROM updates:
srm3
srm4



NOTE: Ensure you follow the VMware Upgrade method to the DOT…….!!
The first update went wrong as I mounted the ISO file from my desktop to the vRA via the vSphere Client, and when it updated and rebooted it lost the connection to vCenter and I didn’t have the option to re-register the vRA…. >_<”
I pretty much had to delete the vRA and install a brand new one and I’m still none the wiser as to what went wrong during the upgrade!!

vRA Upgrade Procedure

  1. Download the vRA 5.8 ISO image and copy the ISO file to a datastore that is accessible from the vCenter Server where your vRA is currently deployed.
  2. In Web Client, right-click the vSphere Replication virtual machine and select Edit Settings.
  3. In Virtual Hardware, select CD/DVD Drive > Datastore ISO File.
  4. Navigate to the ISO image in the datastore.
  5. For File Type, select ISO Image and click OK.
  6. Check the box to connect at power on and follow the prompts to add the CD/DVD Drive to the vSphere Replication virtual machine.
  7. Restart the vSphere Replication virtual machine.
  8. In a Web browser, log in to the virtual appliance management interface (VAMI).
    If you are updating vSphere Replication 5.1+, go to https://vr_appliance_address:5480.
  9. Click the Update tab.
  10. Click Settings and select Use CDROM Updates, then click Save Settings.
  11. Click Status and click Check Updates.
    The appliance version appears in the list of available updates.
  12. Click Install Updates and click OK.
  13. After the updates install, click the System tab and click Reboot to complete the upgrade.
  14. Log out of the vSphere Web Client, clear the browser cache, and log in again to see the upgraded appliance.



Once you’ve upgraded the vRA to 5.8, you can now go ahead and upgrade your SRM server to 5.8…… simply run the SRM installer and follow the installation wizard!

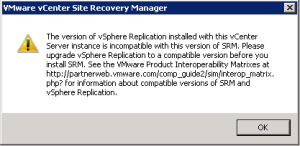

Note: if you didn’t upgrade the vRA before trying to upgrade the SRM server, when the installer prompts to connect to the vCenter Server, you will get the following error:
srm1



BIG WARNING HERE: As soon as you upgrade your SRM to 5.8, you can only manage it via the Web Client…..!!!
And it is completely re-written……. took me a while to work out where all the settings were located!
Same with vRA 5.8, you can’t set replication within the old vSphere client.

Note: I still have no idea where the SRM alarms are set……. ¬_¬”



PS: One of the cool things about vRA 5.8 is the ability to replicated to the cloud! =)

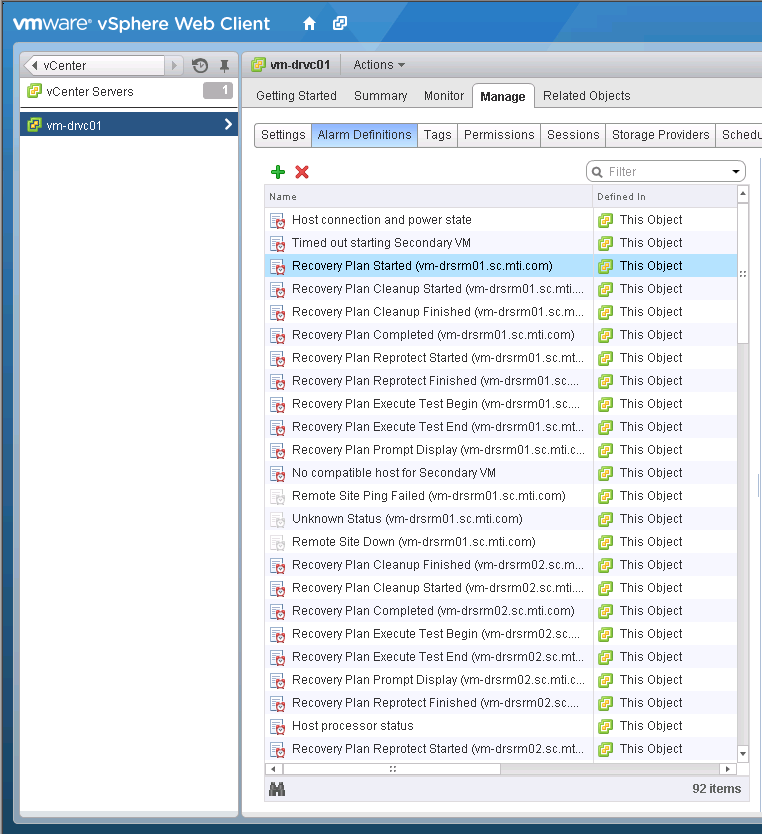

Edit (15/10/14) – The alarms for SRM can be found under the alarms of the vCenter Server that you connected the SRM server to:
In web-client, select vCenter the vCenter Server and under the “Manage” tab, you will find a tab called “Alarm Definitions”. This is where all the SRM alarms are located. =)

srm alarms

Advertisements

2 comments on “Upgrading to SRM 5.8 and vSphere Replication Appliance 5.8

  1. Did you ever find the alarm definitions? I just did a fresh install of SRM 5.8 and it doesn’t seem to add them to the definition list. I did not see a KB article on the VMware site on any bugs or anything.

    Like

    • Hi Herb, yes I did manage to find the alarm definitions….
      You can find them only in the web client. When you are on the home page of web-client, under “Inventories” select vCenter, then under “Inventories List” select your vCenter that SRM is linked to.
      Under the “Manage” tabs, you will find a tab called “Alarm Definitions”. This is where all the SRM alarms are located.

      Like
